> Roth / TORO > Hand operated > Snowthrower > Two stage > 828 PowerShift > 629/38545 > 9000001 > Engine No. 63-3010 Ignition Assy. (Serial No. 9000101 thru 9000330)

Spare Parts Lists for Toro Roth / TORO Engine No. 63-3010 Ignition Assy. (Serial No. 9000101 thru 9000330)




pos.decriptionspare part number
65-1530
65-2170

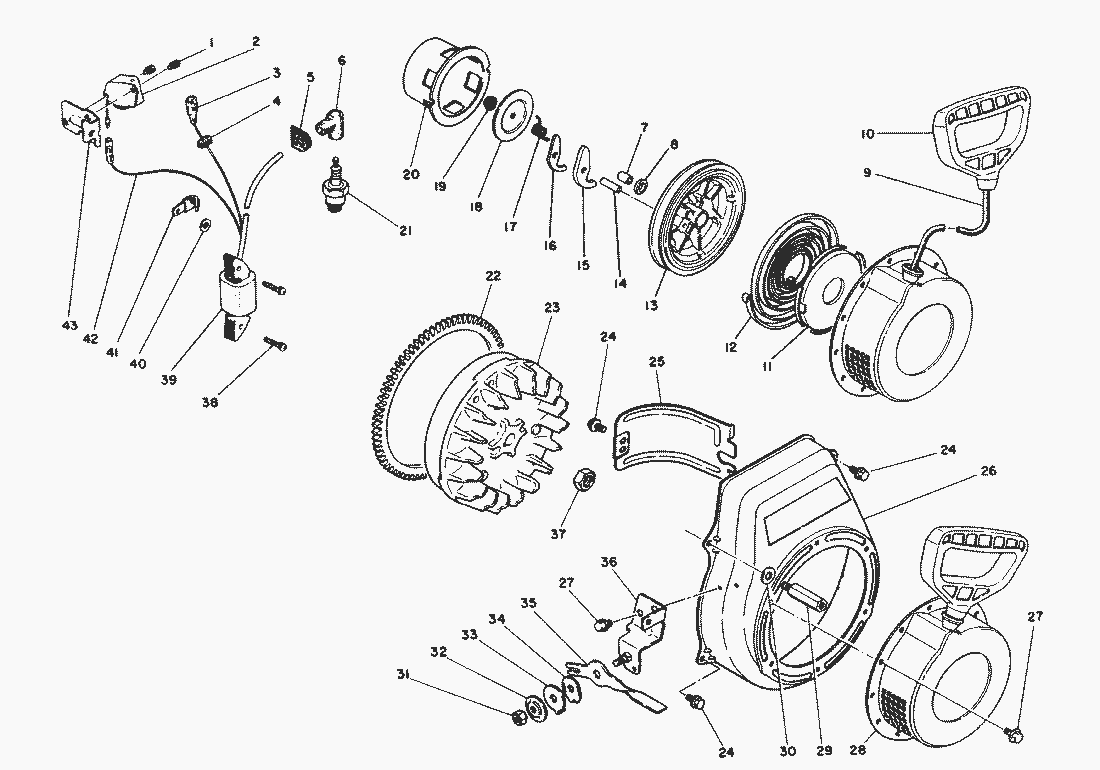

spare parts list


pos.decriptionspare part number
1Screw & Washer54-4610
2Unit-Ignition65-2370
3Wire-Leas65-0650
4Grommet65-1810
5Grommet65-0630
6Cap-Plug65-0620
7Shaft65-1540
8Washer65-1550
9Rope-Starter65-1660
10Handle-Starter65-1670
11Case65-1650
12Spring-Spiral65-1640
13Reel65-1630
14Pin65-1620
15Ratchet65-1610
16Ratchet65-1600
17Spring-Friction65-1590
18Plate-Friction65-1580
19Nut-Flange65-1570
20Pulley-Starter65-1560
21Plug-Spark65-0640
22Gear-Ring65-2360
23Flywheel65-2180
24Bolt-Flange65-0050
25Baffle-Cylinder65-0750
26Cover-Fan65-2190
27Bolt-Flange65-0840
29Bolt-Shoulder65-1880
30Washer65-0540
31Nut65-0830
32Washer65-0820
33Washer-Lock65-0810
34Spring-Leaf65-0800
35Lever-Control65-0790
36Bracket65-0780
37Nut65-2200
38Screw & Washer65-0710
39Coil-Ignition (Incl. Ref.65-2380
40Nut-Push65-0730
41Clamp-Cable65-0740
42Wire-Lead65-0660
43Bracket-Unit65-1830
