> Roth / TORO > Hand operated > Snowthrower > Two stage > 1232 PowerShift > 630/38591 > 79000001 > 32 Auger Gearcase Assy. No. 74-1562

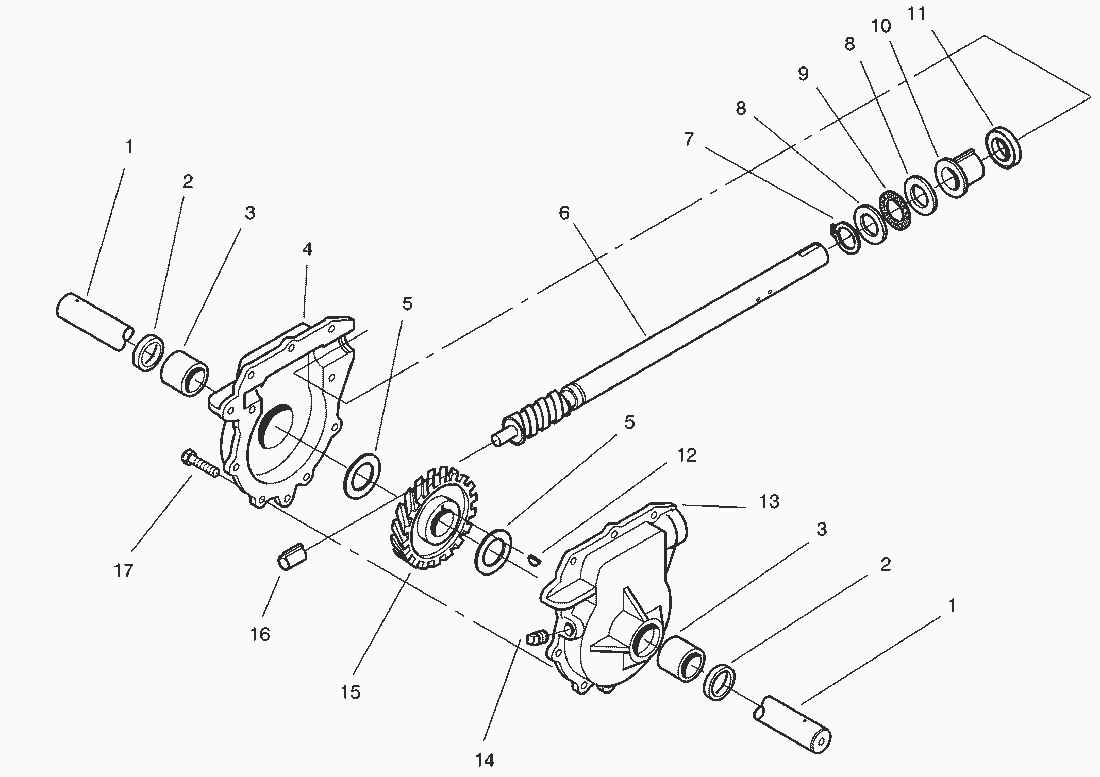

Spare Parts Lists for Toro Roth / TORO 32 Auger Gearcase Assy. No. 74-1562




pos.decriptionspare part number
74-1550
74-1540
spare parts list


pos.decriptionspare part number
1Shaft-Auger (32)62-1532
2Oil Seal7-0045
3Bushing256-237
5Thrust Bearing252-71
6Shaft-Impeller66-7811
7Ring-Snap32151-33
8Thrust Washer252-78
9Thrust Bearing252-76
10Bushing-Input37-6560
11Seal-lnput253-149
12Key-Woodruff3257-10
14Pipe Plug281-1
15Gear-Helical62-0120
16Bushing-Worm62-1150
17Screw-Hex Washer Hd.32144-110
Sealant-1009 Tube505-129
