> Roth / TORO > Hand operated > Snowthrower > Two stage > 1232 PowerShift > 630/38591 > 79000001 > Engine Assy. OHSK 120-222023F and OHSK 120-222024F (Cont.)

Spare Parts Lists for Toro Roth / TORO Engine Assy. OHSK 120-222023F and OHSK 120-222024F (Cont.)

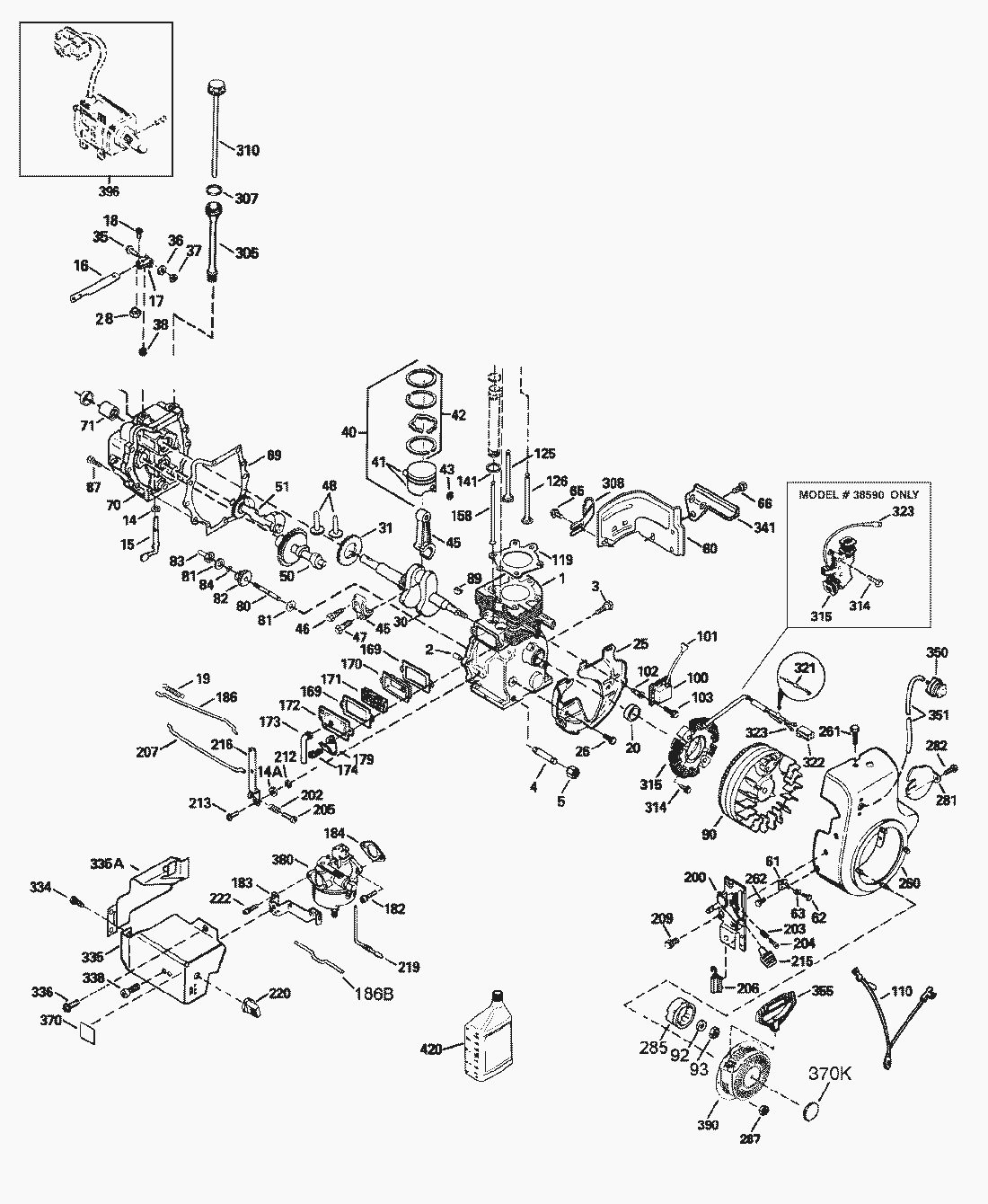

spare parts list 1

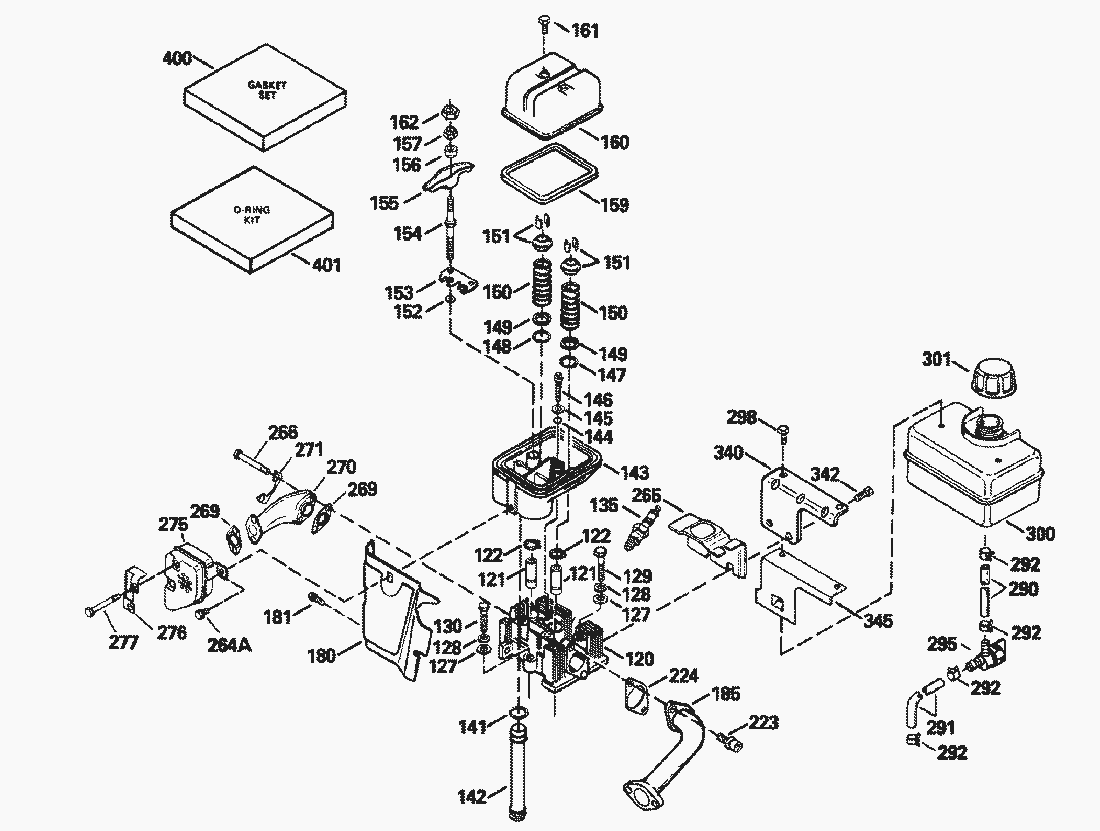

spare parts list 2


pos.decriptionspare part number
35677A
35775
35774
35684A
spare parts list


pos.decriptionspare part number
298Screw, Hex Washer Hd., Self-tap650665
30034156A
301Cap-Fuel Tank36246
340Bracket-Fuel Tank35696
342Screw792028
345Baffle-Heat35699
400Set-Gasket35331B
401Kit-ORing35332
spare parts list


pos.decriptionspare part number
2Pin, Dowel27652
3Screw, Hex Hd. Shoulder650820
5Cap-Oil Drain30969
14Washer, Flat28277
14Washer28558
15Governor Rod (Incl. Ref.35685
16Lever-Governor35686
17Clamp, Governor Lever29916
18Screw, Hex Washer Hd.650548
19Spring-Extension35688
20Seal, Oil35319
25Blower Housing Baffle36460
26Screw, Hex Washer Hd.650561
28Locknut, Hex30322
30Crankshaft36706
31Gear-Counterbalance35327
35Screw, Hex Washer Hd.29826
36Lockwasher, E.T.29918
37Locknut, Hex29216
38Ring, Retaining29642
4035776
4035777
4035778
41Piston & Pin Assembly Standard (Includes ref.35773
42Ring Set, Piston (Standard)35779
42Ring Set, Piston (.010 oversize)35780
42Ring Set, Piston (.020 oversize)35781
43Retaining Ring, Piston Pin35772
45Rod Assembly-Connecting (Incl. ref.35681
46Bolt-Connecting Rod650908
47Screw, Connecting Rod650882
48Lifter-Valve35313
50Camshaft35682A
51Weight-Counterbalance35315A
60Extension-Blower Housing35316A
61Bracket, Grommet Mounting34126
62Screw, Pan Hd. Taptite650760
63Grommet, Plastic28545
65Screw, Fil. Hd.650128
66Screw, Hex Washer Hd.650561
69Gasket-Cylinder Cover35683
71Bushing, Crankshaft35377
75Seal, Oil35319
80Shaft-Governor35751
81Washer-Flat35479
82Gear-Asm Governor35321
83Spool-Governor35322
84Ring, Retaining29193
86Screw, Hex Washer Hd.650833
87Screw, Hex Washer Hd.650832
89Key, Flywheel32589
90Flywheel w/Ring Gear OHSK120-222023E Only611094
90Flywheel/Gear611093
92Washer, Lock650880
93Nut, Flywheel650881
100Solid State Assy.35135
101Cover, Spark Plug610118
102Stud, Lamination Mounting650872
103Screw, Sternantrieb T-15651007
110Wire, Ground35253
119Gasket-Cylinder Head35306A
125Valve-Exhaust (Std.)35308
12535433
126Valve-Intake (Std.)35309
12635432
158Rod-Push35466
169Gasket-Breather27896A
170Body, Breather28423
171Element, Breather28424
172Cover, Valve Spring28425
173Tube-Breather35350
174Screw, Fil. Hd.650128
179Clip-Retaining30593
182Screw-Hex. Hd.650517
183Bracket-Choke34583A
184Gasket-Carburetor33263
186Link-Governor35691
186Spring-Choke36653
200Bracket-Control (Incl. Ref.35702
202Spring-Compression36482
203Spring, Compression31342
204Screw, Fil. Hd.650549
205Screw650777
206Terminal Assy.610973
207Link-Throttle35692
209Screw, Hex Washer Hd. Thread Cutting650821
212Bushing30773A
213Screw650930
215Knob-Control35440
216Lever-Adjusting35679
219Rod-Choke35689
220Knob, Choke35438
222Screw, Fil. Hd.28820
260Housing-Blower35694
261Screw, Fil. Hd. Sems30063
262Screw, Phil. Hex Hd.29747B
281Cover, Starter Bubble33013
282Screw, Pan Hd. Taptite650760
285Starter Cup35985B
287Nut & Lockwasher29752
305Tube-Oil Fill35574
307O Ring35499
308Clip-Oil Fill35539
310Dipstick35700
314Screw-Hex. Hd.650873
