> Roth / TORO > Hand operated > Snowthrower > Two stage > 1232 PowerShift > 630/38591 > 79000001 > Handle Assy. (Cont.)

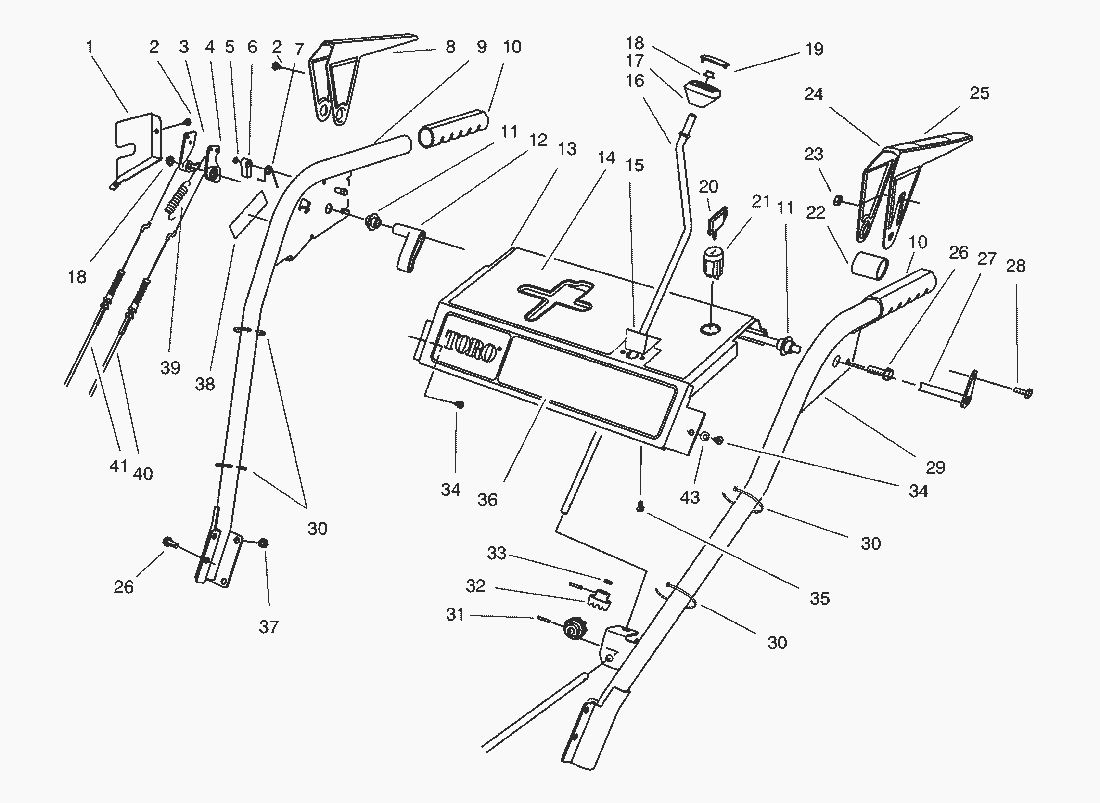

Spare Parts Lists for Toro Roth / TORO Handle Assy. (Cont.)




spare parts list


pos.decriptionspare part number
37Nut-Lock3296-47
38Decal-Warning (Model No. 38580 Only)66-6860
Decal-Warning (Model No. 38543 Only)94-2575
39Spring-Extension88-0810
40Cable-Traction63-2710
41Cable-Impeller63-2700
43Washer3256-14
Wire Assembly54-9810
Assembly-Wire, Adapter (Model 38566 only)66-6900
Harness-Wire63-3420
Loose Parts Kit (Model 38590 Only)17-4279
Loose Parts kit (Model 38591 Only)17-4289
