> Roth / TORO > Hand operated > Snowthrower > Two stage > 1232 PowerShift > 630/38591 > 79000001 > Engine Assy. OHSK 120-222023F and 120-222024F

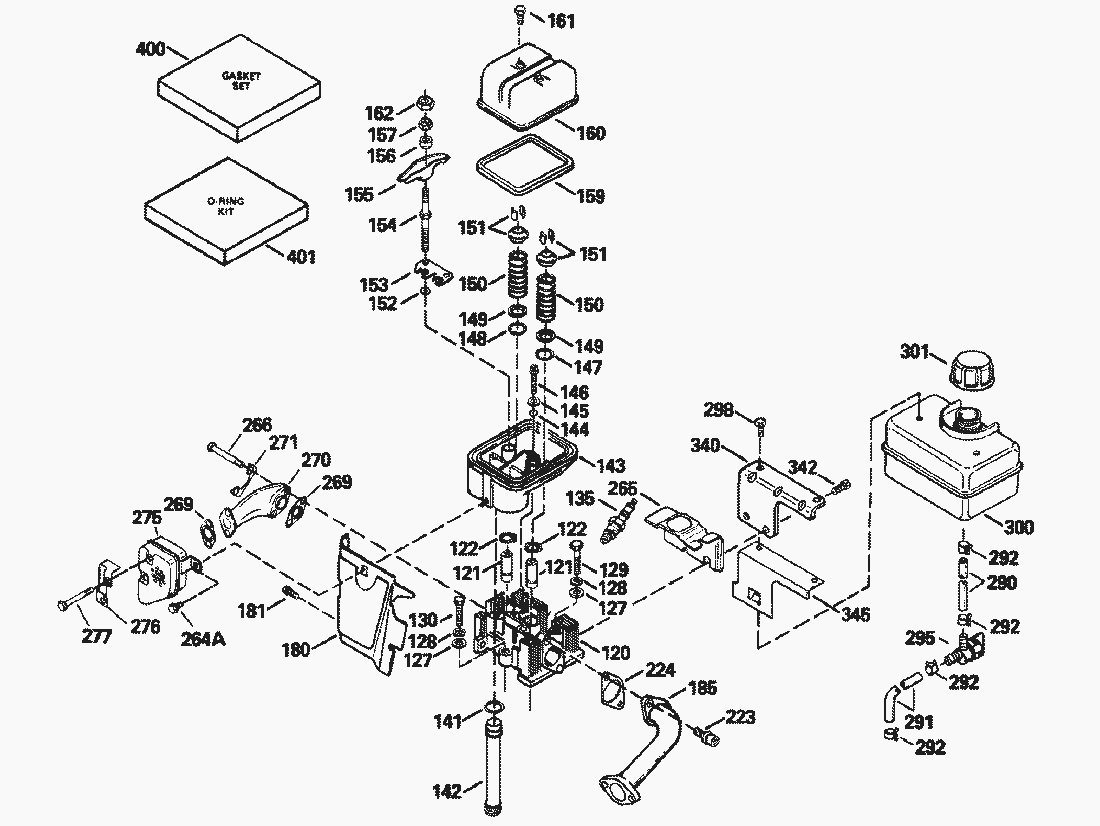

Spare Parts Lists for Toro Roth / TORO Engine Assy. OHSK 120-222023F and 120-222024F




pos.decriptionspare part number
Nut-Lock28264
spare parts list


pos.decriptionspare part number
120Head-Cylinder35307
121Kit-Valve Grind (Incl. 2 of Ref.730218
122Ring, Retaining792035
127Washer, Flat650691
128Washer-Belleville650690
129Screw650746
130Screw650692
135Spark-Plug (RL86C)34046
141ORing33481
142Tube-Push Rod35475
143Housing-Rocker Arm35310
144ORing33484
145Washer, Flat650168
146Bolt, Connecting Rod32610A
147ORing33509
148O-Ring (Also Incl. in 401)34410
149Cap-Valve Spring33510
150Spring-Valve33507
151Keeper-Valve Spring33508
152O-Ring (Also Incl. in 401)35295
153Guide-Push Rod35296
154Stud-rocker Arm650878
155Arm-Rocker35297
156Bearing-Rocker Arm35298
159ORing35299B
160Housing-Rocker Arm35300
161Screw650879
162Nut-Jam650903
180Extension-Blower Housing35301
181Screw, Fil. Hd.650128
185Pipe-Intake35690
223Screw650971
224Gasket-Pipe33515A
264Screw, Fil. Hd. Sems30063
265Cover-Cylinder Head35290
266Screw650876
269Gasket-Exhaust35762
270Manifold-Exhaust35292
271Plate-Locking35293
275Muffler35294
276Plate-Locking35348
277Screw650877
290Line-Fuel30962
291Line, Fuel29774
292Clamp, Fuel Line26460
295Valve-Shut-Off35857
