> Roth / TORO > Hand operated > Snowthrower > Single stage > CCR 2000 > 618/38186 > 0000001 > Discharge Chute Assy.

Spare Parts Lists for Toro Roth / TORO Discharge Chute Assy.




pos.decriptionspare part number
Decal-Danger Chute (Model No. 38500)63-3740
Decal-Discharge63-3760
12-8289
12-8749

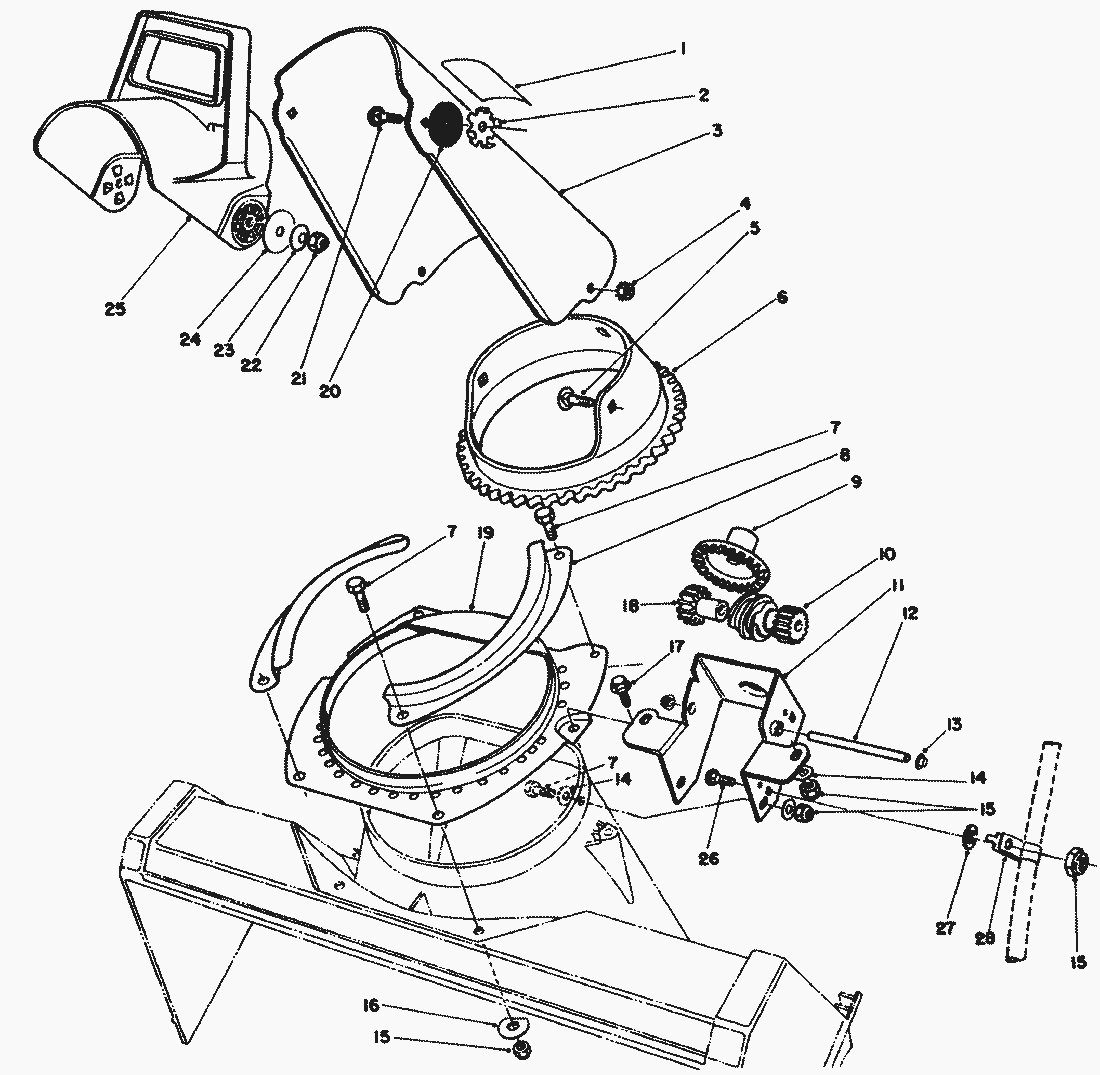

spare parts list


pos.decriptionspare part number
2Plate-Friction55-8950
4Locknut32149-1
5Carriage Bolt3230-18
6Gear Ring-Chute55-8720
7Capscrew321-4
8Retainer-Chute Ring55-8910
9Gear-Face55-8740
10Gear-Worm/Spur55-8730
11Bracket-Chute Gears61-4610
12Shaft-Gear55-9150
13SICHERUNGSKAPPE32112-11
14Washer3256-22
15MUTTER3296-42
16Washer55-9680
17Screw-Special46-8092
18Spacer/Spur Gear55-8750
19Ring-Chute Support55-8920
20Washer Rubber20-4320
21Bolt-Carriage3230-22
22MUTTER3296-29
23Washer Belleville3290-340
24Washer3256-68
25Deflector56-2680
26Screw-Carriage3229-11
27Washer3256-23
28Cable Clamp61-4630
