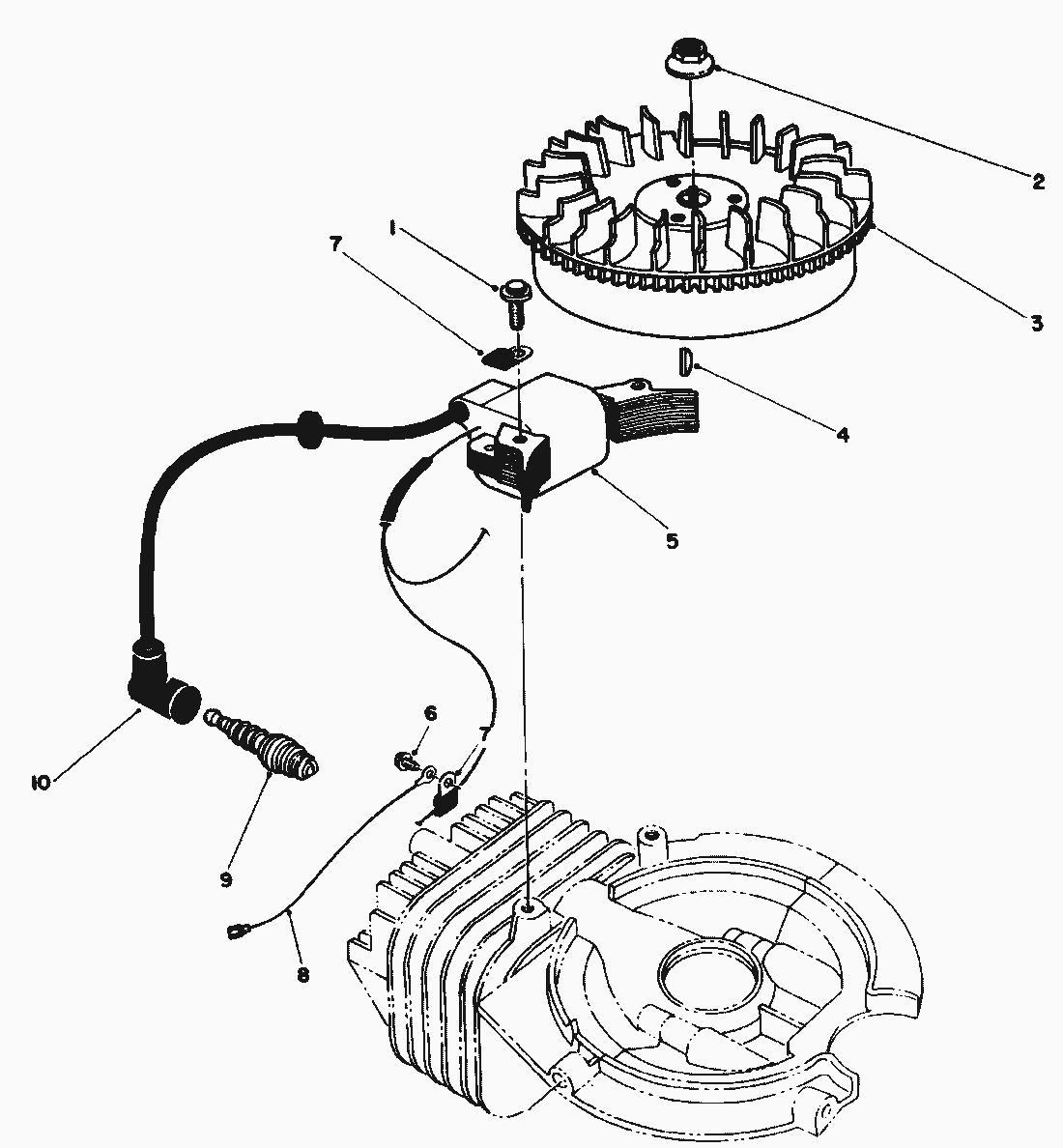

Flywheel & Ignition Assy. (Engine Model No. 47PK9)
Spare Parts Lists for Toro Roth / TORO Flywheel & Ignition Assy. (Engine Model No. 47PK9)
pos.
decription
spare part number
1
Socket Hd. Capscrew
81-5710
2
MUTTER
81-1330
3
Flywheel
81-4620
4
KEIL
81-2370
5
Coil-Magneto
81-4630
6
SCHRAUBE
53-1340
7
KLEMME
81-1480
8
Wire-Ground
81-2860
9
ZUENDKERZE
81-0181
10
ZUENDKERZENSTECKER
81-1500
SCHWUNGRADABZIEHER TORO
41-7650
