> Roth / TORO > Hand operated > Snowthrower > Single stage > CCR 2000 > 618/38186 > 0000001 > Recoil Starter Assy. (Engine Model No. 47PK9)

Spare Parts Lists for Toro Roth / TORO Recoil Starter Assy. (Engine Model No. 47PK9)

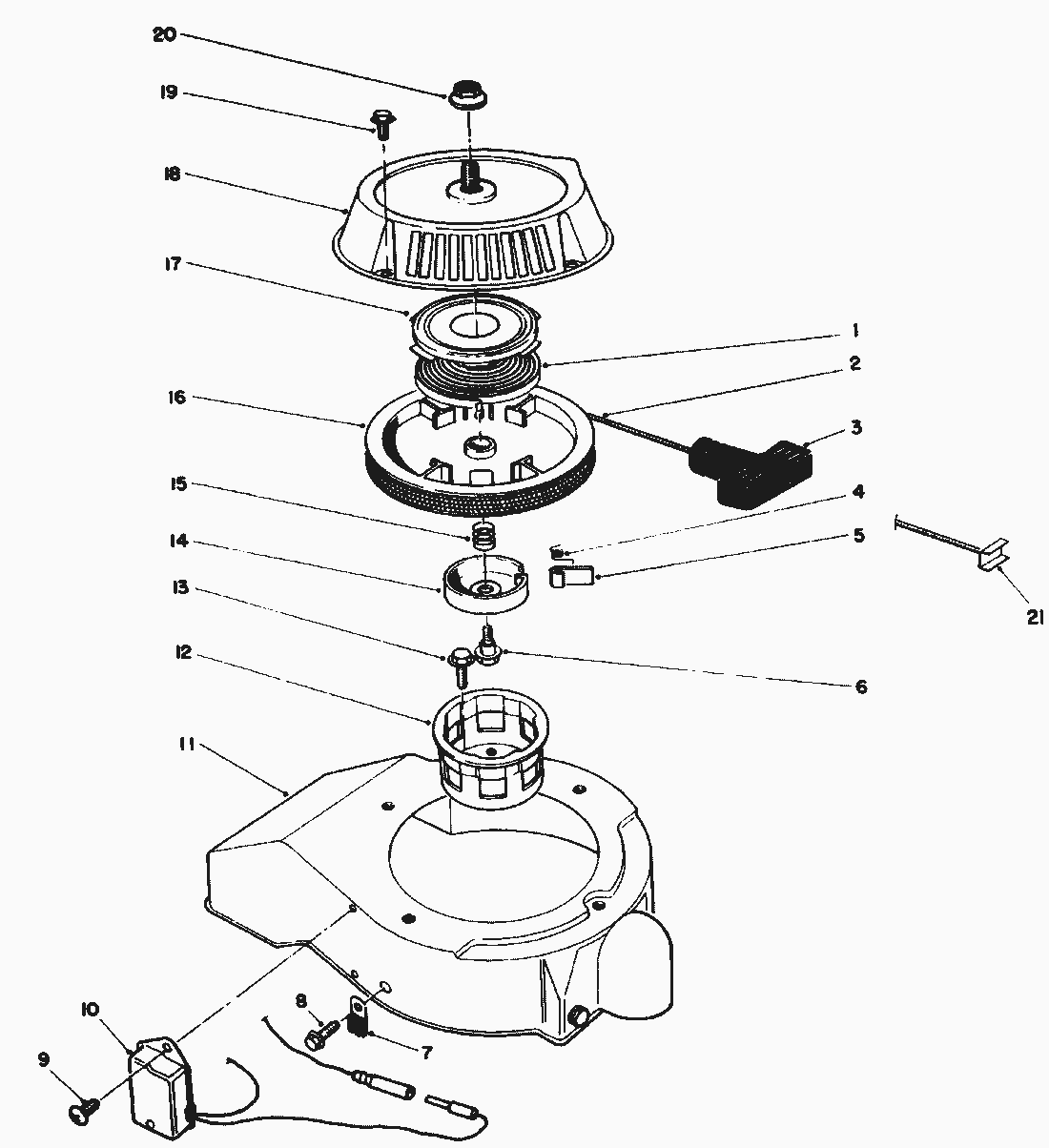

spare parts list


pos.decriptionspare part number
1STARTERFEDER INCL.HALTER81-1200
2Rope81-2870
3STARTERGRIFF M.SEILKLEMME81-1630
4FEDER81-1220
5MITNEHMER81-1230
6SCHRAUBE81-1260
7Clamp-Magneto Wire55-3070
8SCHRAUBE53-1340
9Screw81-4660
10Xstar Module-Magneto81-4640
11Shroud-Blower81-4610
12STARTERGLOCKE81-1290
13SCHRAUBE81-1300
14MITNEHMERGEHAEUSE81-1250
15FEDER81-1240
16SEILSCHEIBE81-1210
17
18Case-Recoil81-0290
19Bolt81-0390
20Nut-Hex81-0300
21STARTERGRIFF M.SEILKLEMME81-5760
RUECKLAUFSTARTER KPL.81-0280
STARTERFEDER INCL.HALTER81-2300
