> Roth / TORO > Hand operated > Snowthrower > Single stage > CCR 2000 > 618/38186 > 0000001 > Handle Assy.

Spare Parts Lists for Toro Roth / TORO Handle Assy.




pos.decriptionspare part number
12-4639
12-5939

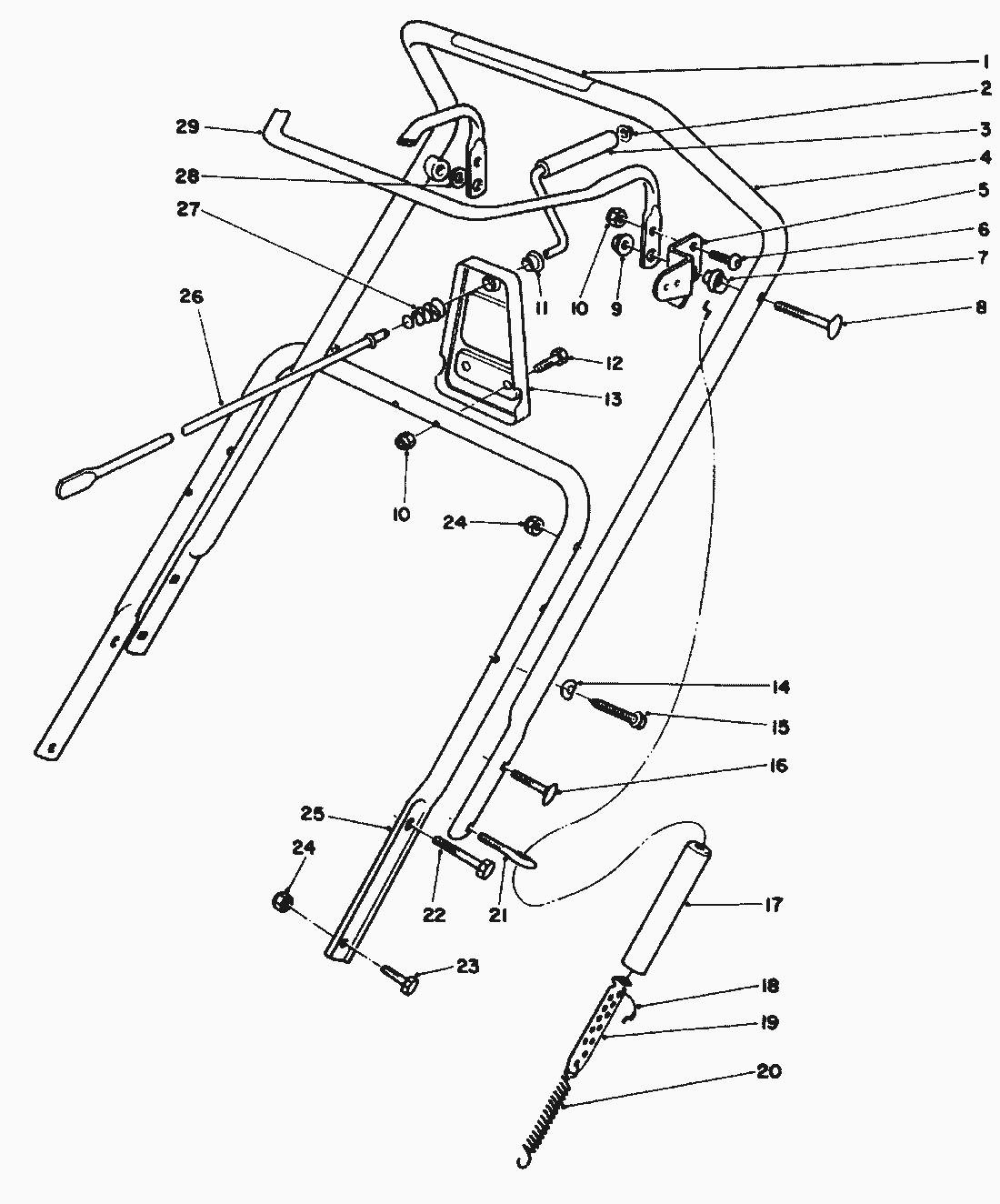

spare parts list


pos.decriptionspare part number
1Decal-Rotor Drive66-6870
Decal-Rotor Drive (Model No. 38180C)60-9470
2Push-On Speed Nut3290-320
3Grip-Crank Handle66-6540
5Arm-Clutch Cable55-9100
6Screw-Button Hd.3274-31
7Spacer-Control Bar55-9340
8Screw-Handle17-9420
9Nut-Flange Lock3296-58
10MUTTER3296-42
11Nyliner256-249
12Screw-Hex. Hd.321-13
13Support-Chute Crank55-9090
14Washer3-7501
15Machine Screw-Hex Hd.61-8640
16Screw-Handle17-9424
17Cover-Spring55-9390
18Cable-Clutch55-9321
19Adjuster-Clutch Cable55-9380
20Spring-Extension55-9270
21Bolt-Eye55-9420
22Capscrew322-9
23Capscrew322-3
24MUTTER3296-29
25Handle-Lower55-9120
26Rod-Chute Crank55-9140
27Spring-Compression55-9440
28Washer-Rubber55-9670
29Bar-Control55-9130
