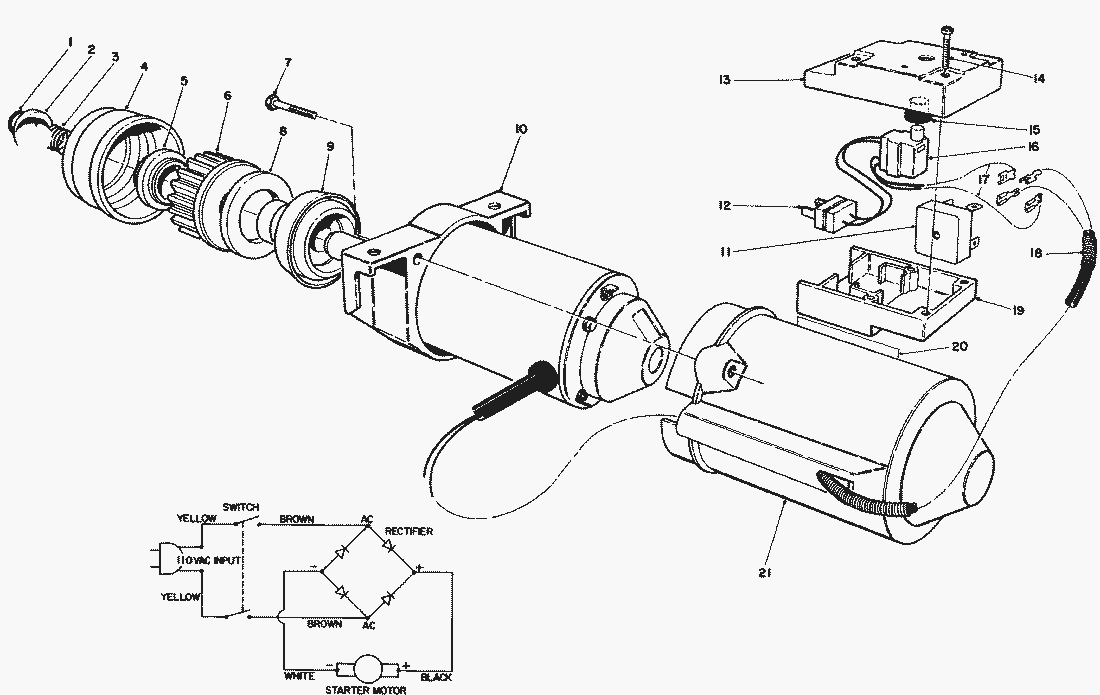

Starter Engine & Switch Housing Assy.
Spare Parts Lists for Toro Roth / TORO Starter Engine & Switch Housing Assy.
pos.
decription
spare part number
Pinion Assembly
61-4700
61-4601
pos.
decription
spare part number
1
Retaining Ring
61-4680
2
Pinion Stop
61-4670
3
Spring
61-4690
4
5
6
7
Screw-Plastite
61-4640
8
9
11
Bridge Rectifier
37-7600
12
Plug
36-8370
13
Cap-Switch Housing (Model No. 38185C only)
66-1760
14
Screw-Plastite
66-4830
15
Boot-Switch
61-4810
16
Starter Switch
61-4820
17
Wire-Switch to Rectifier
36-8360
18
Cable Cover
61-4860
19
Base-Switch Housing (Model No. 38185C only)
66-1750
20
Decal-UL
66-6590
21
Cover-Starter Motor
61-4620
Cord-7 Ft.
28-9170
