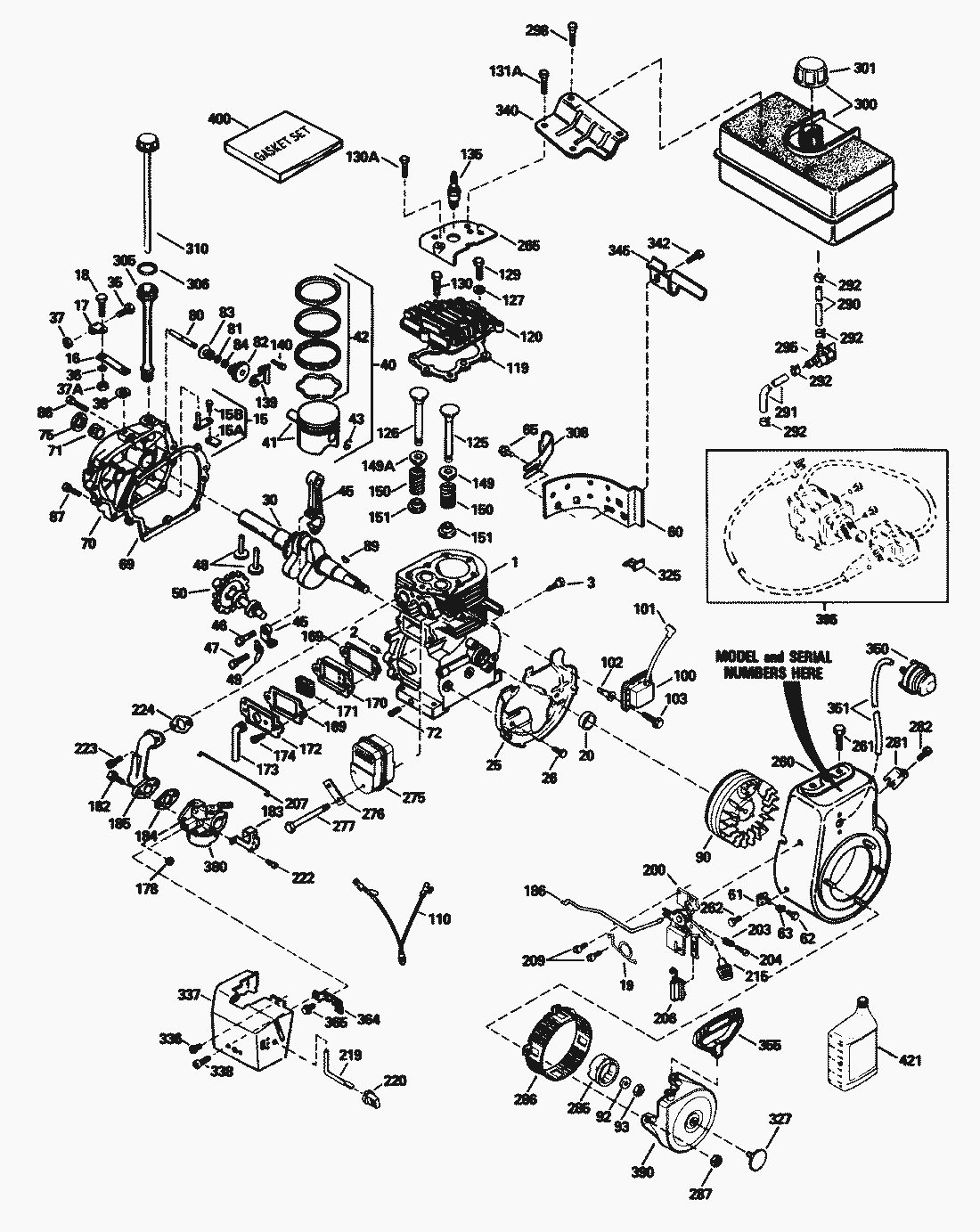

| pos. | decription | spare part number | |
| 2 | Pin, Dowel | 27652 |
| 3 | Screw, Hex Hd. Shoulder | 650820 |
| 15 | Yoke, Governor | 30700 |
| 15 | Screw, Fil. Hd. | 650494 |
| 16 | Lever, Governor | 33454 |
| 17 | Clamp, Governor Lever | 29916 |
| 18 | Screw, Hex Washer Hd. | 650548 |
| 19 | Spring, Speed Control | 34663 |
| 20 | Seal, Oil | 35319 |
| 25 | Baffle, Blower Housing | 35326 |
| 26 | Screw, Hex Washer Hd. | 650561 |
| 30 | Crankshaft Assy. | 35372 |
| 35 | Screw, Hex Washer Hd. | 29826 |
| 36 | Lockwasher, E.T. | 29918 |
| 37 | Locknut, Hex | 29216 |
| 37 | Locknut, Hex | 30322 |
| 38 | Ring, Retaining | 29642 |
| 40 | Piston, Pin & Ring Assy. (Incl. Ref. | 34552 |
| 42 | Ring Set, Piston (Std.) | 34332 |
| 42 | Ring Set, Piston (.010 Oversize) | 34333 |
| 42 | Ring Set, Piston (.020 Oversize) | 34334 |
| 43 | Ring, Piston Pin Retaining | 27888 |
| 46 | Bolt-Connecting Rod | 650908 |
| 47 | Screw, Connecting Rod | 650882 |
| 48 | Lifter, Valve | 34034 |
| 49 | Dipper, Oil | 35374 |
| 50 | Camshaft (Mechanical Compression Release) | 35375 |
| 60 | Extension, Blower Housing | 33273A |
| 61 | Bracket, Grommet Mounting | 34126 |
| 62 | Screw, Pan Hd. Taptite | 650760 |
| 63 | Grommet, Plastic | 28545 |
| 65 | Screw, Fil. Hd. | 650128 |
| 69 | Gasket-Cylinder Cover | 35262 |
| 70 | Cover, Cylinder (Incl. Ref. | 35376 |
| 71 | Bushing, Crankshaft | 35377 |
| 72 | Plug, Sq. Hd. Pipe, 1/4-18 (Oil Drain) | 27642 |
| 75 | Seal, Oil | 35319 |
| 80 | Shaft, Mechanical Governor | 31845 |
| 81 | Washer, Flat | 30590A |
| 83 | Spool, Governor | 30588A |
| 84 | Ring, Retaining | 29193 |
| 86 | Screw, Hex Washer Hd. | 650833 |
| 87 | Screw, Hex Washer Hd. | 650832 |
| 89 | Key, Flywheel | 32589 |
| 90 | Flywheel | 611091 |
| 92 | Washer, Lock | 650880 |
| 93 | Nut, Flywheel | 650881 |
| 100 | Solid State Assy. | 35135 |
| 101 | Cover, Spark Plug | 610118 |
| 102 | Stud, Lamination Mounting | 650872 |
| 103 | Screw, Hex Hd. | 650814 |
| 110 | Wire, Ground | 35253 |
| 119 | Gasket-Cylinder Head | 34041A |
| 120 | Head, Cylinder | 34030 |
| 126 | | 34035 |
| 127 | Washer, Flat | 650691 |
| 129 | Screw, Special Hex Hd. Tapped | 650727 |
| 130 | Screw, Hex Flange Hd. | 6021A |
| 130 | Screw, Hex Washer Hd. Taptite | 650802 |
| 131 | Screw, Hex Hd. | 650713 |
| 135 | Spark Plug, Resistor (Champion RJ-19LM) | 35395 |
| 139 | Bracket, Governor Gear | 33369 |
| 140 | Screw, Hex Washer Hd. Thread Forming | 650836 |
| 149 | Cap, Upper Valve Spring (Exhaust) | 27882 |
| 149 | Seal Ass y-Intake Valve | 35862 |
| 150 | Spring, Valve | 27881 |
| 151 | Cap, Lower Valve Spring | 32581 |
| 169 | Gasket-Breather | 27896A |
| 170 | Body, Breather | 28423 |
| 171 | Element, Breather | 28424 |
| 172 | Cover, Valve Spring | 28425 |
| 173 | Tube-Breather | 35350 |
| 174 | Screw, Fil. Hd. | 650128 |
| 178 | Nut & Lockwasher | 29752 |
| 182 | Screw, Fil. Hd. | 30088A |
| 183 | Bracket, Choke | 34587 |
| 184 | Gasket-Carburetor | 33263 |
| 185 | Pipe, Intake | 33877 |
| 186 | Link, Governor | 34667 |
| 200 | Remote Speed Control Assy. (Incl. Ref. | 34677 |
| 203 | Spring, Compression | 31342 |
| 204 | Screw, Fil. Hd. | 650549 |
| 206 | Terminal Assy. | 610973 |
| 207 | Link, Governor Lever-to-Throttle | 33878 |
| 209 | Screw, Hex Washer Hd. Thread Cutting | 650821 |
| 215 | Knob-Control | 35440 |
| 219 | Rod, Choke | 34586 |
| 220 | Knob, Choke | 35438 |
| 222 | Screw, Fil. Hd. | 28820 |
| 223 | Screw, Fil. Hd. | 650378 |
| 224 | Gasket-Intake Pipe | 27915A |
| 260 | Housing, Blower | 34822A |
| 261 | Screw, Hex Hd. Spinlock Thread Forming | 650788 |
| 262 | Screw, Phil. Hex Hd. | 29747B |
| 265 | Cover, Cylinder Head | 33272A |
| 275 | Muffler | 35056 |
| 276 | Plate, Muffler Locking | 31588 |
| 277 | Screw, Hex Hd. | 792093 |
| 281 | Cover, Starter Bubble | 33013 |
| 282 | Screw, Pan Hd. Taptite | 650760 |
| 285 | Cup, Starter | 35287 |
| 286 | Screen, Starter | 35446 |
| 287 | Nut & Lockwasher | 29752 |
| 290 | Line, Fuel | 29774 |
| 291 | Line, Fuel | 30705 |
| 292 | Clamp, Fuel Line | 26460 |
| 295 | Valve-Shut-Off | 35857 |
| 298 | Screw, Hex Washer Hd., Self-tap | 650665 |
| 301 | Cap-Fuel Tank | 35355 |
| 305 | Tube Assy.-Oil Fill | 35554 |
| 306 | O Ring | 35499 |
| 308 | Clip, Fill Tube | 35540 |
| 310 | Dipstick, Oil (Incl. Ref. | 35555 |
| 325 | Clip, Spring | 29443 |
| 327 | Plug, Starter | 35392 |
| 336 | Screw, Hex Washer Hd., Self drilling | 650765 |
| 337 | Cover-Carburetor | 35057A |
| 338 | Screw, Hex Washer Hd. | 28942 |
| 340 | Bracket, Fuel Tank Mounting | 34155 |
| 342 | Screw, Hex Washer Hd. | 650561 |
| 345 | Plate, Fuel Tank Mounting | 34154 |
| 350 | Primer Assembly | 570682 |
| 351 | Line-Primer | 32180C |
| 355 | Handle-Mitten Grip Starter | 590574 |
| 364 | Bracket, Carburetor Cover Mounting | 33377 |
| 365 | Screw, Hex Washer Hd., Taptite | 650767 |
| 390 | Starter, Rewind | 590630 |
| 395 | Motor Kit-Electric Starter (120 Volt) (Order as an accessory) | 33329C |
| 400 | Gasket Set | 33279G |
| 421 | SAE5W30 4 Cycle Oil (Quart) RPM Setting: Low Speed 1700, High Speed 3450 | 730226 |
