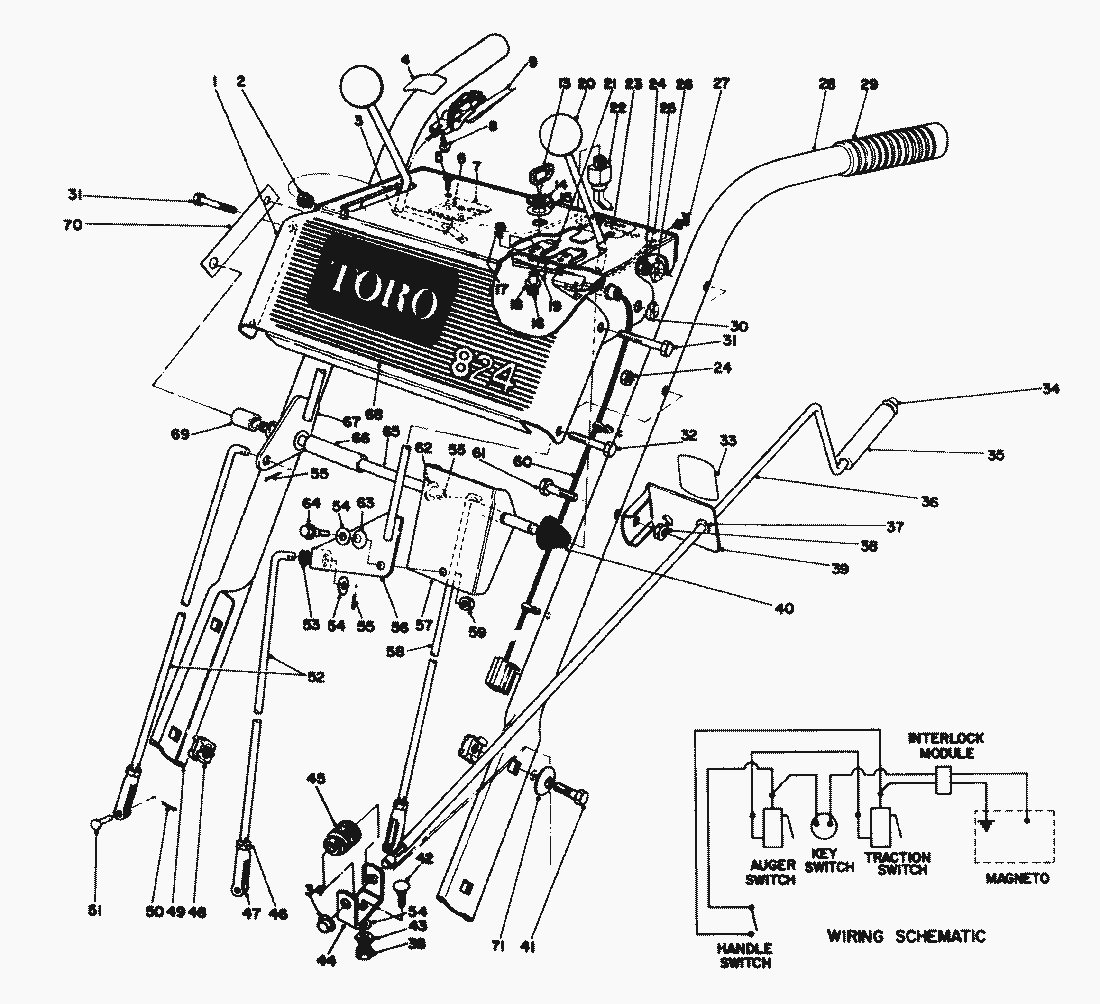

Spare Parts Lists for Toro Roth / TORO Handle Assy.

pos.	decription	spare part number
1	Escutcheon Plate	14-5469
2	Snap Bushing	237-130
3	Speed Nut	3290-354
4	Decal Safety Interlock	29-6360
5	Machine Screw	3290-313
6	Micro Switch	40-8200
7	Pad Switch Mounting	22-7950
8	Hex Washer Hd. Thread Forming Screw	12-3270
9	Interlock Handle & Switch	40-9690
13	Key-Ignition	63-8360
14	Hex Nut	218-461
15	Lockwasher	3254-5
16	Nut	3296-2
17	Screw-Machine	3251-5
18	Spacer-Interlock	22-9740
19	Spring-Interlock	22-9730
20	Knob	233-21
21	Slide Interlock	22-9751
22	Switch-On/Off (Incl. Ref.	40-8241
23	Decal-Instructions	74-1390
24	MUTTER	3296-42
25	Clamp-Wire	43-4750
26	Washer Pyramidal	3290-257
27	Stud-Mounting	43-4760
28	Handle Left	25-6040
29	Grip-Handle	74-1380
30	Klip Ring	32151-43
31	Capscrew	321-11
32	Hex. Hd. Capscrew	321-9
33	Decal-Chute Direction	63-3510
34	Push-On Speed Nut	3290-320
35	Grip-Crank Handle	66-6540
36	Rod-Chute Control	40-8311
37	Nyliner	256-249
38	MUTTER	3296-29
39	Bracket-Chute Control (Incl. Ref.	12-7739
40	Spring Conical	17-5630
41	Hex Screw	323-4
42	Carriage Bolt	3230-2
43	Pyramidal Washer	3290-238
44	Bracket-Chute Worm	40-8280
45	Worm Gear	40-8250
