> Roth / TORO > Hand operated > Snowthrower > Two stage > 824 > 612/38080 > 2000001 > Recoil Starter No. 590630

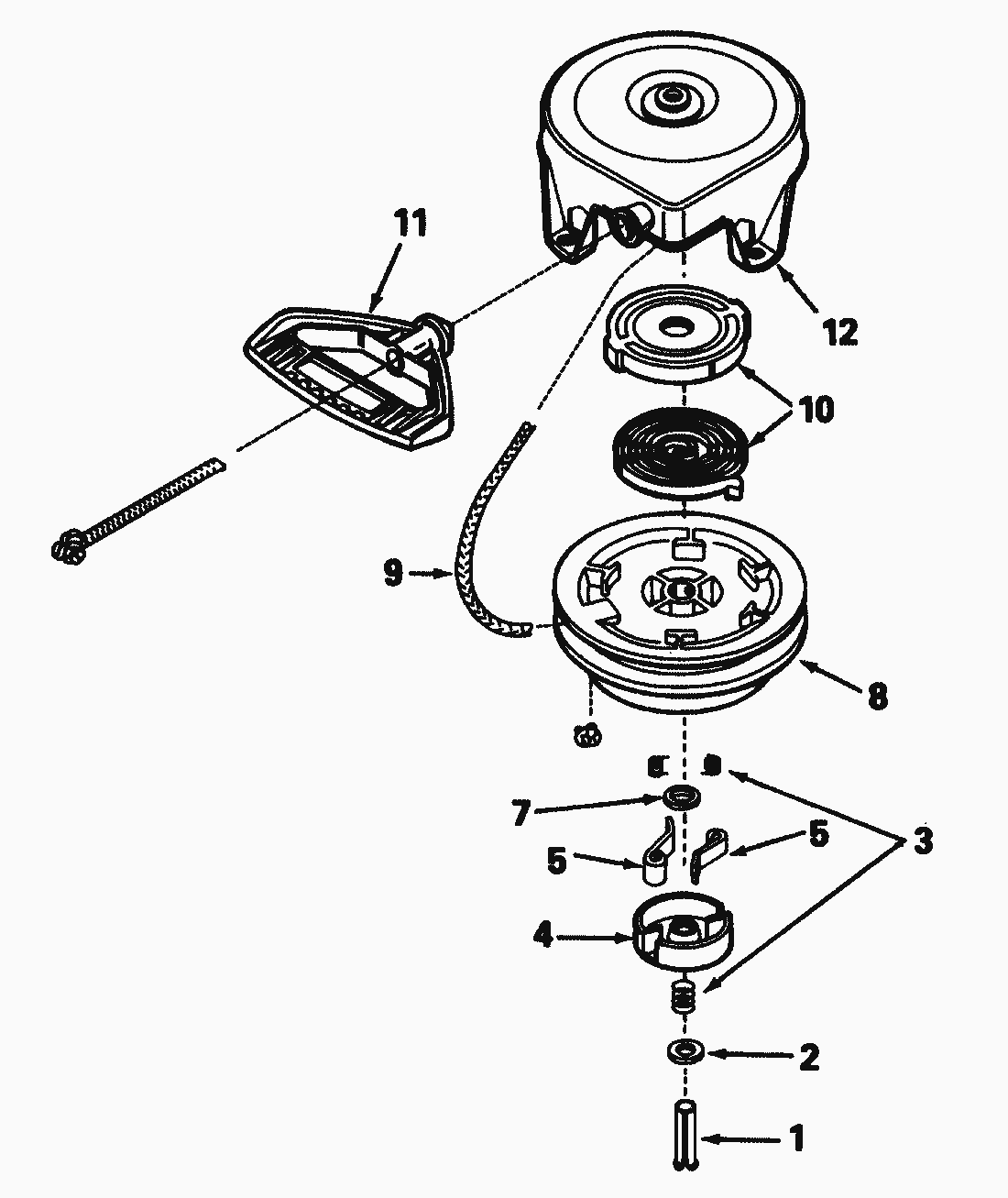

Spare Parts Lists for Toro Roth / TORO Recoil Starter No. 590630




spare parts list


pos.decriptionspare part number
1590599A
2Washer590600
3Springs-Brake & Dog590651
4Retainer590627
5Dog, Starter590641
7Washer590601
8Pulley590628
9A Rope-Starter590451
10Spring & Keeper Assy.590629
11Handle-Mitten Grip Starter590574
12Housing Assy., Starter590631
