> Roth / TORO > Hand operated > Snowthrower > Two stage > 824 > 612/38080 > 7000001 > Recoil Starter No. 590630

Spare Parts Lists for Toro Roth / TORO Recoil Starter No. 590630

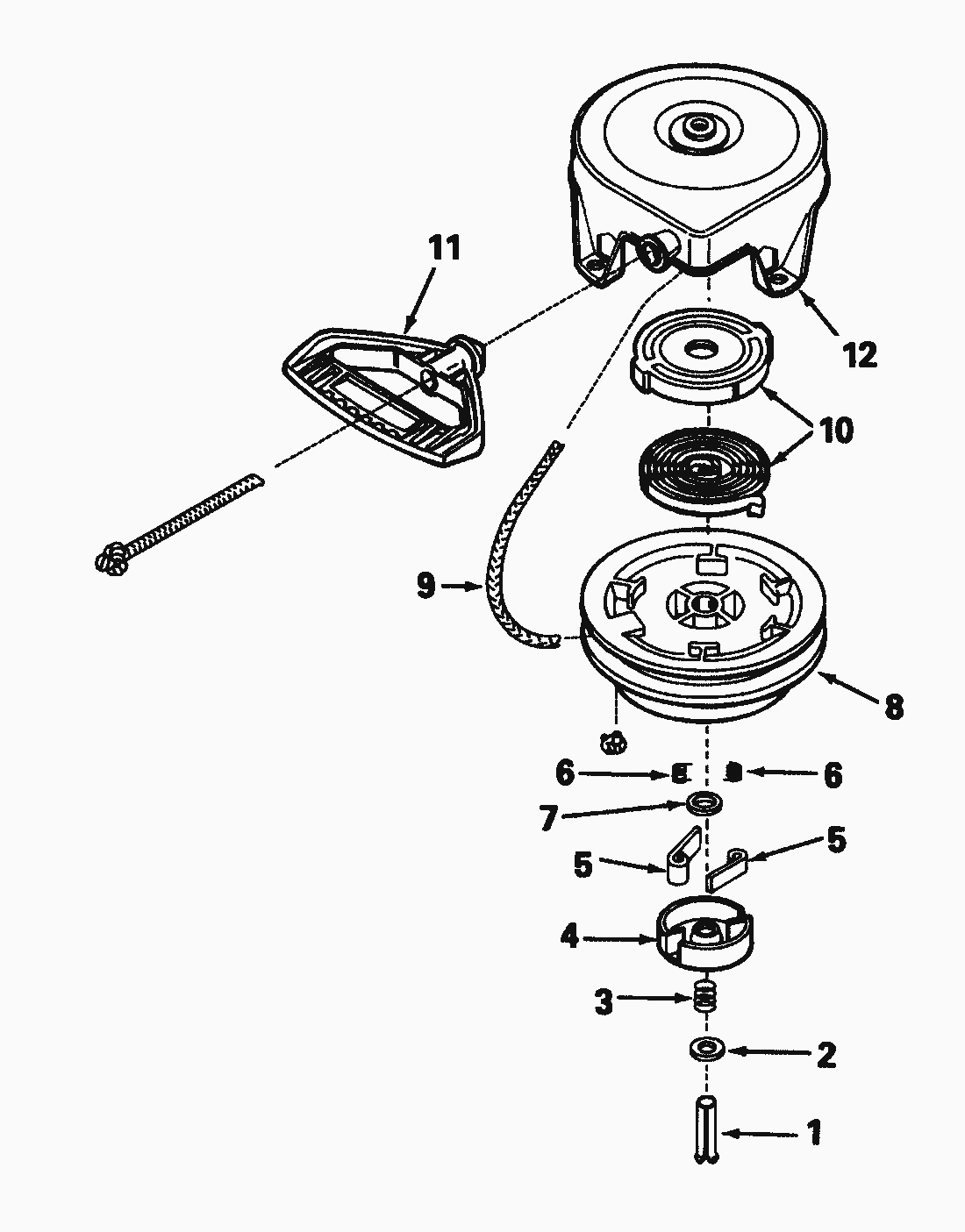

spare parts list


pos.decriptionspare part number
1Pin-Spring590599
2Washer590600
3Spring-Brake590598
4Retainer590627
5Dog, Starter590148
6Spring, Dog590617
7Washer590601
8Pulley590628
9Rope, Starter590451A
10Spring & Keeper Assy.590629
11Handle-Mitten Grip Starter590574
12Housing Assy., Starter590631
