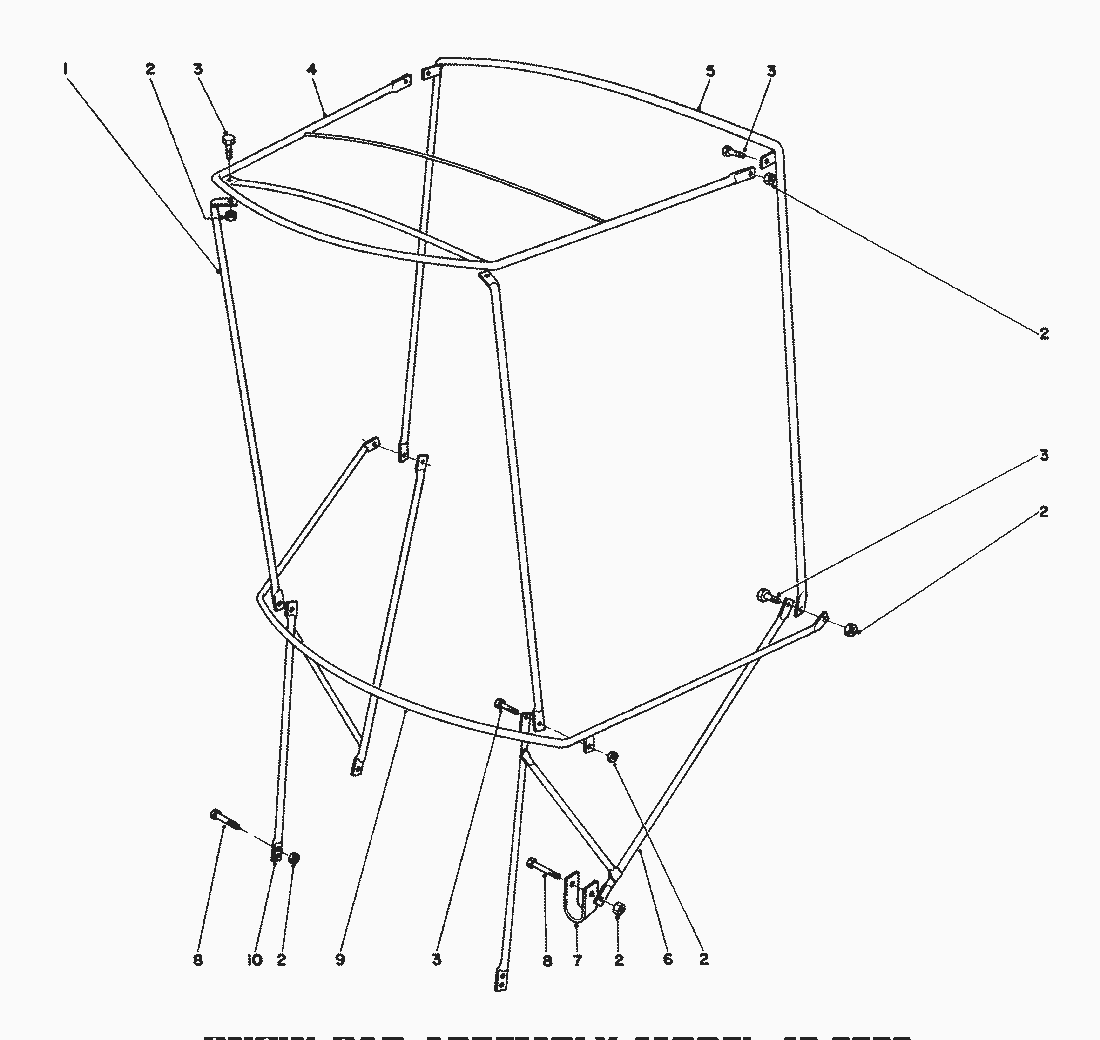

Snow Cab Assy. Model 42-3380
Spare Parts Lists for Toro Roth / TORO Snow Cab Assy. Model 42-3380
pos.
decription
spare part number
1
Front Corner Post
12-8040
2
Locknut
32153-4
3
Capscrew
321-4
4
Top Frame
12-8010
5
Rear Vertical Bow
12-8030
6
Attaching Bracket L.H.
42-4060
7
U Clamp
12-8050
8
Capscrew
321-11
9
Horizontal Curved Bow
12-8020
10
Attaching Bracket R.H.
42-4050
